S&S Concrete Equipment Rentals
S&S Concrete Floors
strives for innovative methods to create the
highest quality concrete solutions. Internal
engineers developed ground-breaking technology
in a Somero S-240 Laser Screed and a Somero
Screed & Topping Spreader.
Here is some
of the equipment that pushes S&S Concrete floors
to the leading edge:

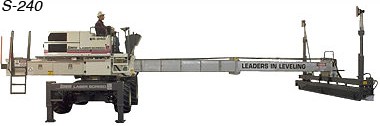

• Somero
S-240 Laser Screed
• Razorback Double
Finishing Trowel

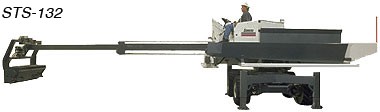

• Somero Screed &
Topping Spreader
The equipment rental
program at S&S Concrete Floors offers
everything to place and finish a
concrete floor. This includes equipment
and equipment with operators.
Concrete professionals turn to S&S
Concrete Floors to:
• Rent extra machinery
for larger jobs
• Use up to date
equipment without a capital investment
• Avoid the overhead of owning and
maintaining equipment
Contact us today for availability of
our rental equipment.
|
 |
|
Equipment rentals WITH operators
include:
|
|
|
| |
|
|
| |
 |
|
|
|
• Overall Width (Outside
of Tires): 7’-8”
• Overall Width (At
Screed Head): 14’-1”
• Overall Length (Boom
In): 18’-3”
• Overall Length (Boom
Out): 36’-1”
• Overall Length
(Transport): 28’-5”
• Overall Height:
8’-3”
• Weight (Nominal):
15,100 lbs.
|
• Boom Reach:
20’
• Screed Width:
12’
• Screed Area Per Pass:
240 sq. ft.
• Upper Frame Rotation:
360 degrees
• Vehicle Stabilizers:
4 hydraulic stabilizer pads
• Engine: 4 Cyl,
4 Stroke, diesel 199 cu. in.
• Horse Power:
65HP @ 2600 rpm
|
|
|
BACK TO TOP
|
| |
|
|
| |
|
|
| |
 |
|
|
|
• Overall Width (Outside
of Tires): 7’-4”
• Overall Length (Boom In):
18’-4”
• Overall Length (Boom Out):
39’-9”
• Overall Height: 8’-0”
• Ground Clearance:
0’-10” (under stabilizers)
|
• Weight (Nominal):
14,100 lbs. empty
• Weight (Nominal):
16,500 lbs. full hoppers
• Boom Travel:
21’-5”
• Wheel Base:
5’-6”
• Track: 6’-0”
|
|
|
BACK TO TOP
|
| |
|
|
| |
|
|
| |
|
|
• Overall Width (Outside
of Tires): 7’-8”
• Overall Length
(Boom Retracted): 30’
• Overall Length (Boom
Extended): 48’
• Overall Height: 7’-6”
• Ground Clearance:
0’-8” (under tubing)
• Weight (Nominal):
14,500 lbs. empty
• Weight (Nominal):
15,200 lbs. full of concrete
• Boom Travel:
21’-5”
• Wheel Base:
6’-0”
• Track: 6’-4”
|
|
|
BACK TO TOP
|
| |
|
Equipment rentals WITHOUT
operators include:
|
|
|
| |
|
|
| |
|
|
• Manual lever steering
• Single location for light/key
switches & tachometer
• Independent manual pitch
control
• Fixed seat frame
with adjustable seat
• 5-bladed spider with
heavy-duty (SHD) gearbox
•
Four lights in front and back
• Torque converter clutch for
true variable rotor speed
• Powered retardant spray system
• Built-in cup holder
• Detachable front access panels
• Kohler air-cooled gasoline
engine
• Optional dolly jack
transport wheels available
|
|
|
|
 |
 |
|
|
BACK TO TOP
|
| |
|
|
| |
|
|
| |
|
|
 |
|
|
|
|
• Engine: Honda
GX160 Gas Engine
• Power: 5.5 hp
• Driving Speed: 50-100
rpm
• Working
Diameter: 36”
• Dimensions: 63” x 40”
x 32”
|
• Engine: Honda
GX340 Gas Engine
• Power: 389 cc
• Max Rotor Speed: SD:
118 / SD-TC: 180 rpm
• Rotor Diameter: 46”
(4 Blades)
•
Dimensions: 89” x 39”
• Weight: 315 lbs.
|
|
|
BACK TO TOP
|
| |
|
|
| |
|
|
| |
|
• Handheld leveling device for
concrete strike-off
• Sinks
aggregates and fibers
• Floats surface of concrete for
smooth finish
• Rides
directly onto wet concrete - no
form work!
• Honda® gas
engine
• Blade lengths:
4/6/8/10/12/14/16 feet
|
|
|
|
BACK TO TOP
|
| |
|
|
| |
|
|
| |
|
|
• Width (At Head):
83-3/4”
• Width (At
Wheels-Standard):
39-3/4”
• Length:
105-1/2”
• Height
(Without Masts):
52-3/4”
• Weight
(Nominal): 895 lbs.
• Ground Clearance:
11-1/2” (under frame)
• Control: Manual
throttle w/Electric Shutoff
• Propel: 4 wheel
drive w/Hydraulic Motors
• Plow Elevation Control:
Laser Control/Head Lift Cyl.
• Head Lift: Manual
Electric Switch (2” Hyd.
Cylinder)
• Plow
Angle Control:
Electronic Leveling Sensor
• Steering Control:
Proportional Joystick
• Propulsion Control:
Proportional Joystick
|
|
|
BACK TO TOP
|
| |
|
|
| |
|
|
| |
|
• Duty Poly Dump Bucket
•
Hydraulic Dump Action
• Solid
2" Thick Steel Frame
• Huge
16 or 21 cu. ft. Bucket Capacity
• Dual Front Tires For Extra
Load Capacity & Traction
•
Easy-To-Use Operator Controls
• Foam-Filled Tires (Optional)
|
• Isolated Steering Column
•
Easy-Squeeze Speed Control Lever
• Enclosed Ventilated Engine
Shroud
• Side-To-Side And
Rear-To-Front Forklift Pockets
• Powerful Gasoline Engines
•
Foot-Operated Dumping Controls
|
|
|
BACK TO TOP
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
